Emily

Measure total methane in wastewater and sludge.

Quantify losses and catch digester problems early.

In-situ, real-time methane measurement for digestate and sludge. Accurate methane management in complex liquids is the first step in effective methane management.

Pre-order Emily

Secure your Emily today

✓Measures residual methane directly within liquid waste streams
✓Quantifies both dissolved and entrained methane in sludge and wastewater
✓Provides real‑time, in‑situ methane concentration data
✓Operates under challenging wastewater conditions, including high concentration of total suspended solids
✓Generates measurement data to support emissions reporting, recovery and optimisation decisions

Emily Specifications

Emily runs a batch sampling cycle, provides industrial signal outputs and operates from a standard single-phase supply.

MEASUREMENT Measurement accuracy: ±10% Sample time: Approx. 15 minutes Total dry solids: Up to 9%

PROCESS CONNECTIONS Max. inlet pressure: 2 bar Max. outlet pressure: 2 bar Water consumption: 12 L/h Sludge & water lines: 3/4″ hose

ELECTRICAL & DATA Power: 220 VAC, 50 Hz, 1-phase, 400 W rated Outputs: 4–20 mA · Modbus TCP · USB data collection · Cloud telemetry (optional)

PHYSICAL Protection: Designed to meet IP54 Weight: c. 100 kg

Specifications subject to change.

Download Emily Brochure

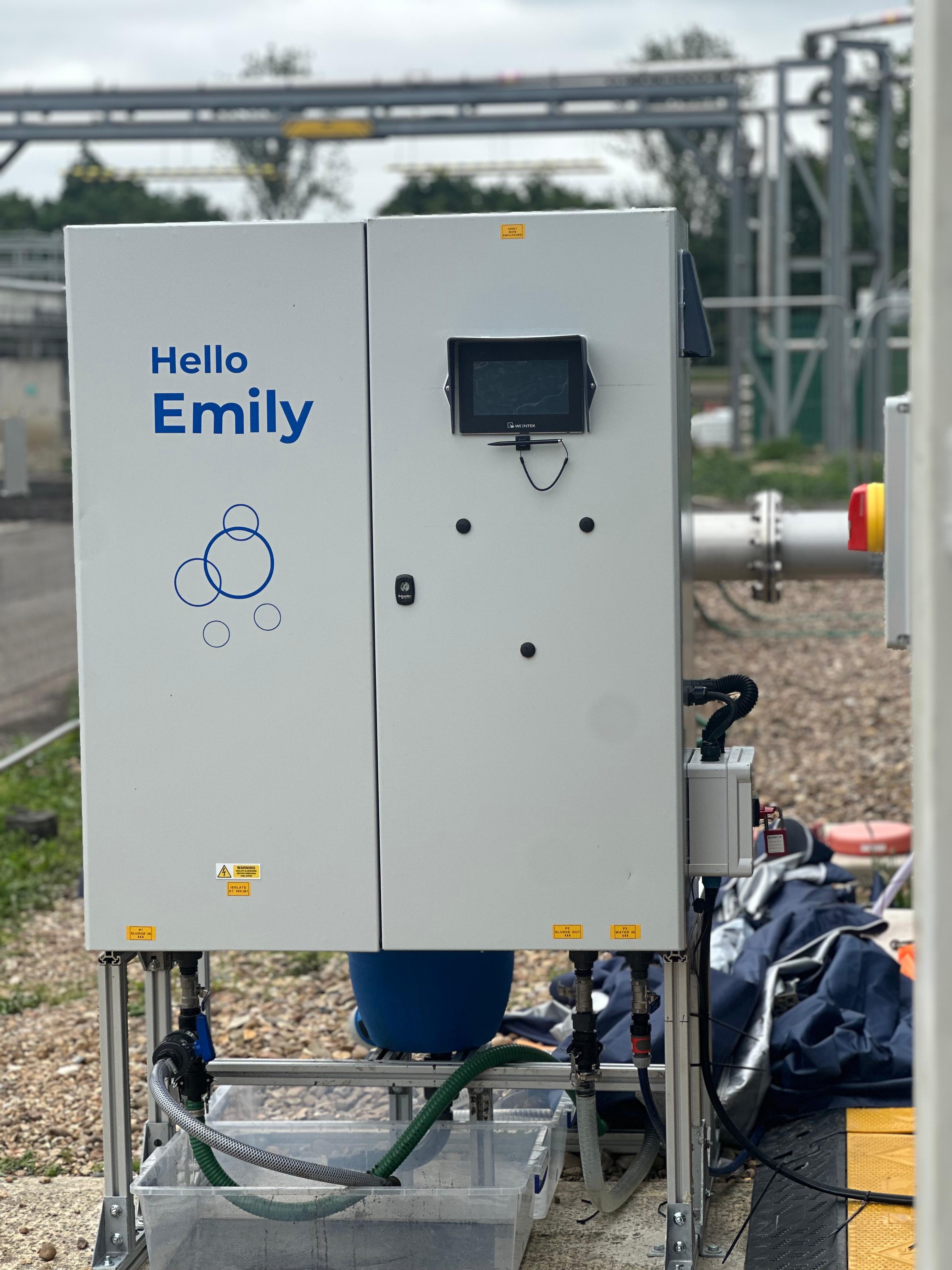

Bluemethane Emily

You’ve already paid to produce that methane, so why let it slip away? Emily measures the methane in your wastewater and sludge, both dissolved and entrained, continuously and in real time. For the first time, you can see exactly how much methane you’re losing.

That means you can fine-tune your process, put investment where it counts, and stop paying for methane that ends up in the air instead of your gas holder.
